C & Z Purlins

C & Z Purlins

C Purlins

c-purlin

C Purlins are horizontal structures that are used to support the load from the roof deck or the sheathing. The plane surface of this purling on one side has made it a preferred material for cladding due to its easy installation on concrete structures or steel. Our range purlins are light in weight and perfect for simple span construction.

Features
  • Optimum quality
  • Easy installation
  • High tensile strength
  • Abrasion & corrosion resistance
Advantages of C Purlins
  • Ability to span length
  • Purlin erection is easier than others
  • Fast to erect and easy handling
  • No side drilling/cutting required
  • Assured dimensions and straightness
  • High durability, versatility and uniform quality
  • Low transportation cost due to decreased weight
  • Close tolerances on sectional sizes due to process of cold roll forming
Specifications
Web Flange Lip Thickness
160 60 20 1.6 to 3mm
200 70 20 1.6 to 3mm
250 80 20 1.6 to 3mm
300 70 20 1.6 to 3mm
300 50 20 1.6 to 3mm

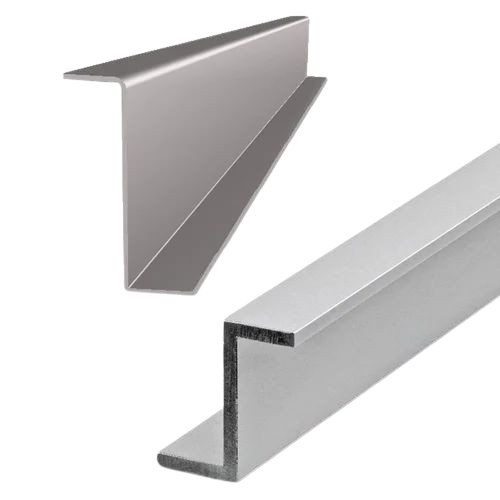

Z Purlins

z-purlin

Z Purlins are made using cold-formed or rolled sheets for supporting roof. The flexible shape of these beams facilitates various designs solutions. These purlins are extensively used in huge roofing solutions such as godowns, workshops, industrials sheds and many more. The range is known for saving upto 50% on structural sheet in comparison with hot rolled angles. Our purlins are crisp and clean in design and do not allow the scope of inaccurate lengths.

Advantages of C Purlins
  • Ability to span length
  • Saving in Steel up to 40%
  • Fast to erect and easy handling
  • No side drilling/cutting required
  • Assured dimensions and straightness
  • Purlin erection is easier than others
  • Saving in construction cost up to 30%
  • High durability, versatility and uniform quality
  • Low transportation cost due to reduced weight
  • Close tolerances on sectional dimensions owing to process of cold roll forming
  • Saving up to 35-40% in weight and 20% in cost when compared to hot rolled purlins
Benefits
  • Fast to erect and easy to handle
  • No site drilling / cutting required
  • Saves steel upto 40%
  • Saves construction cost and time
  • Light weight reduces handling and transportation cost
  • Supplied in exact length and pre punched holes to reduce wastage of steel and fabrication cost
  • Provision of 13mtr length lead to no wastage and helps in fast installation
